How to run docker container on AWS using CLI.
How to run docker container on AWS using Elastic Container Service(ECS) and CLI.
Motivation.
When migrating our infrastructure on AWS I found it is not very clear on how to run the single docker container on AWS cloud. I couldn’t find any brief step-by-step guide on how to setup the project using only (or mostly) CLI. The usage of CLI makes our development workflow faster and allows us to write simply automation scripts and instructions instead of creating heavy GUI-guided guides.
In order to run our container we need to go through the following steps:
- Configure AWS CLI and ECS CLI
- Create docker registry and push container
- Create configuration and run our docker container on ECS.
- Update code in the running containers
Installation
Installation instructions for ECS CLI for all the systems may be found on ECS CLI Installation Installation instructions for AWS CLI for all the systems may be found on AWS CLI Installation
The following installation instructions are provided for macOS.
Install AWS CLI
$ brew install awscli
Install ECS CLI
$ sudo curl -o /usr/local/bin/ecs-cli https://amazon-ecs-cli.s3.amazonaws.com/ecs-cli-darwin-amd64-latest
$ sudo chmod +x /usr/local/bin/ecs-cli
$ ecs-cli --version
If you see something like this, you are fine:
$ ecs-cli --version
ecs-cli version 1.18.1 (7e9df84)
Getting keys
Get you AWS_ACCESS_KEY and AWS_SECRET_KEY
They may be found in AWS Console(this requires GUI interaction):

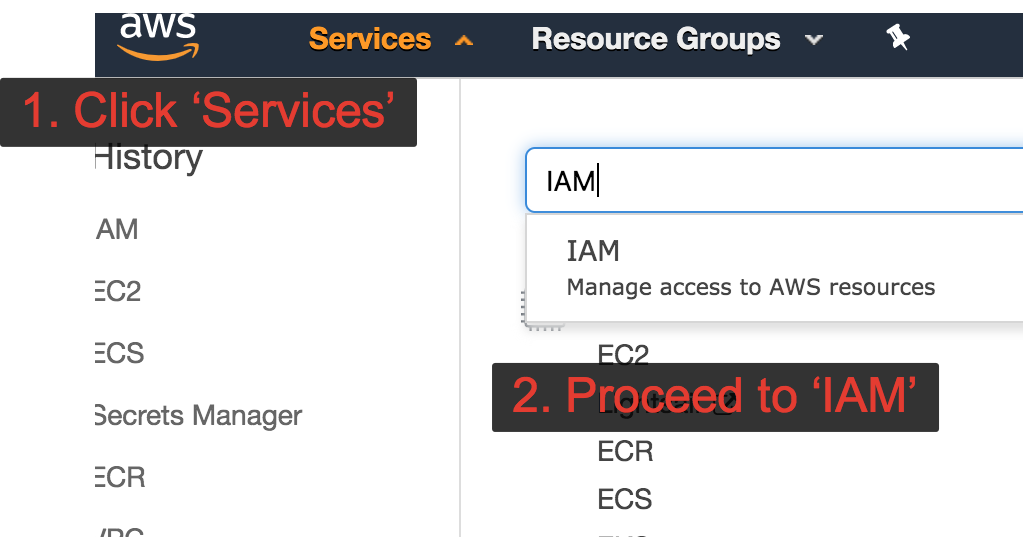

Pic.1. AWS Console. Proceed to IAM.
Proceed to users and click on you username:

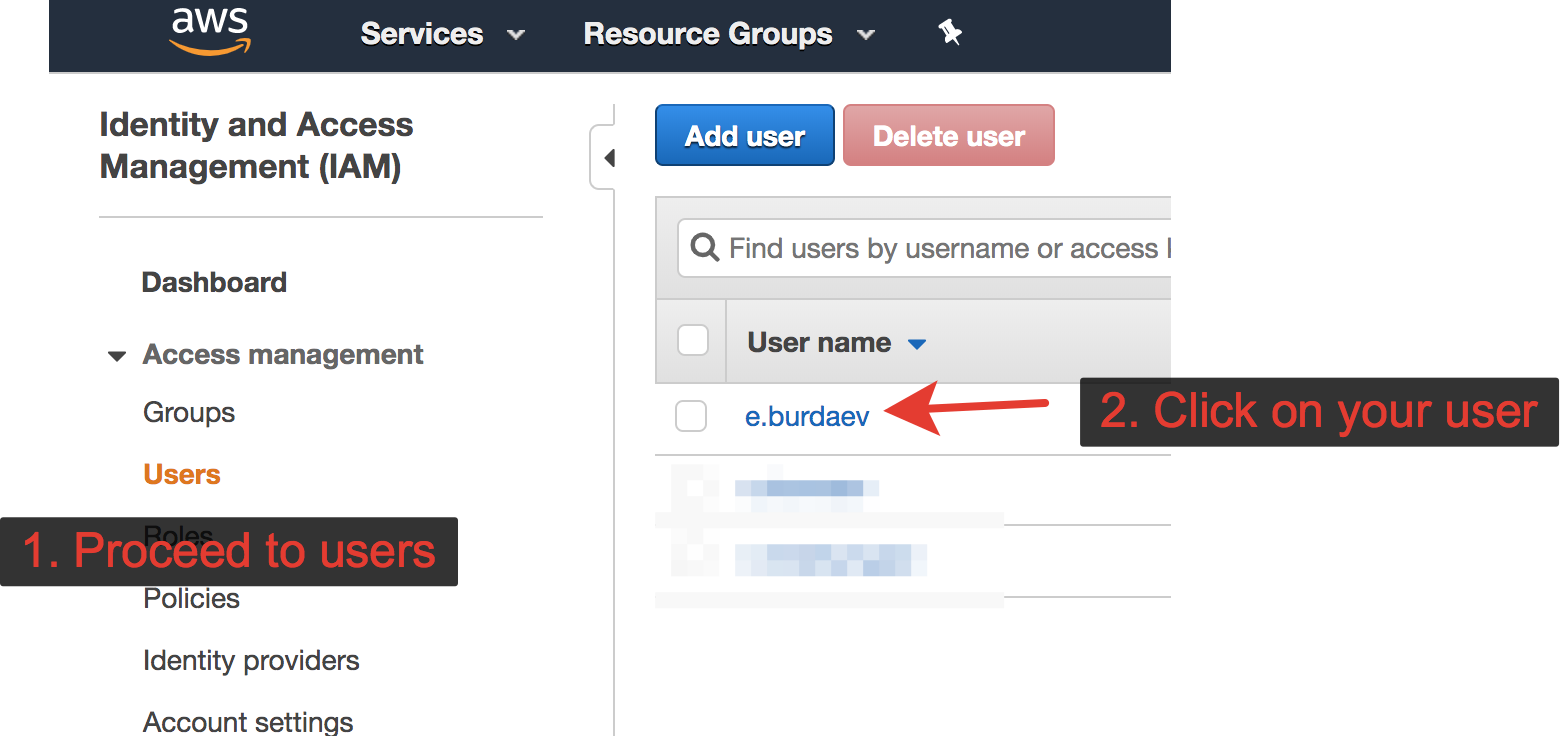

Pic.2. IAM Users
Go to “Security Credentials” and create the key.

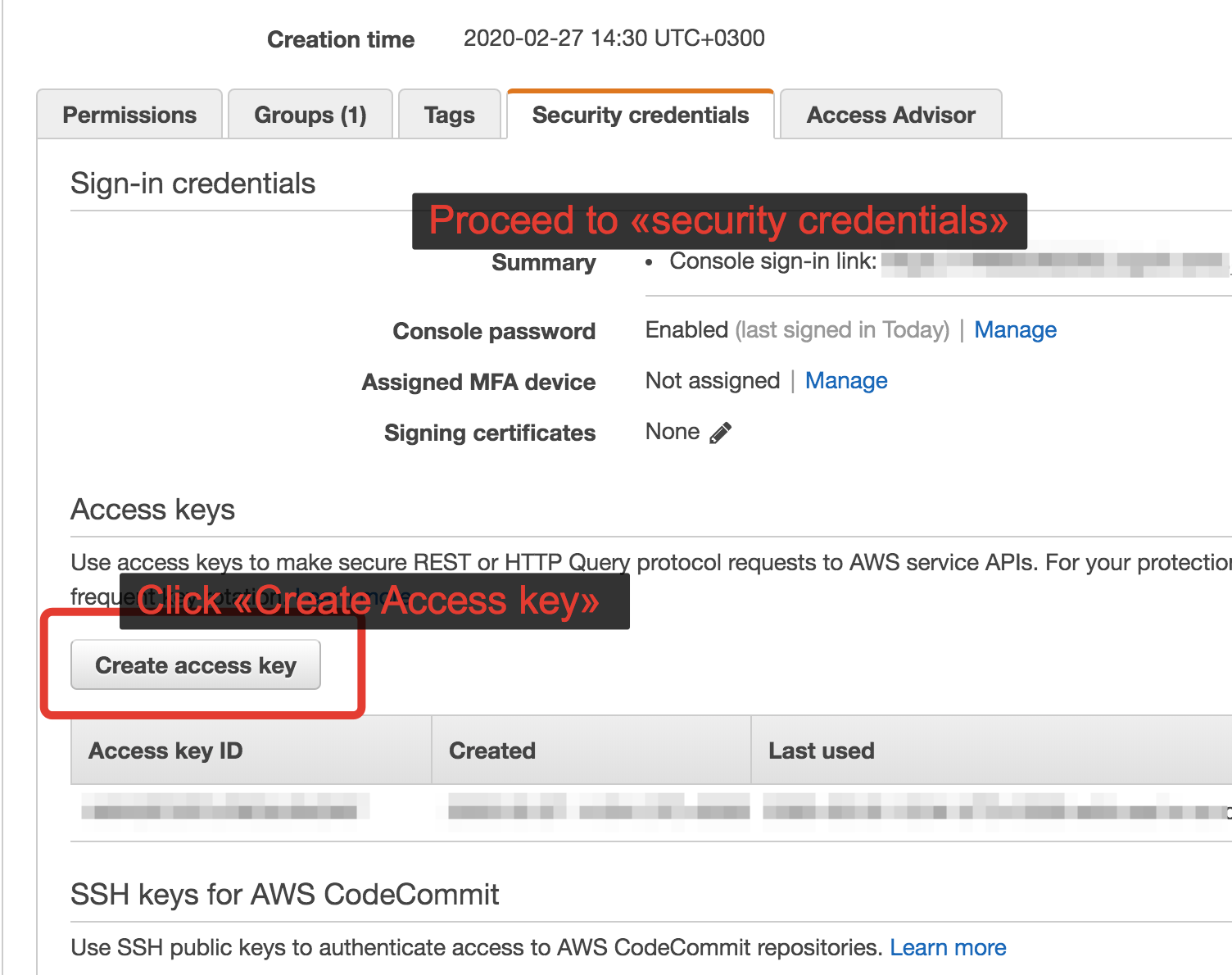

Pic.3. Create Access Key
Copy ID and KEY to safe place.
Configure CLI
Run:
AWS_PROFILE_NAME=my-profile
aws configure --profile $AWS_PROFILE_NAME
You will be prompted with:
AWS Access Key ID [****************M2WF]:
AWS Secret Access Key [****************i1Y2]:
Default region name [eu-central-1]:
Default output format [text]:
Then configure ECS CLI:
$ AWS_ACCESS_KEY_ID=key
$ CLUSTER_NAME=cluster
$ ecs-cli configure profile \
--cluster $CLUSTER_NAME \
--profile-name $AWS_PROFILE_NAME \
--access-key $AWS_PROFILE_NAME \
--secret-key $AWS_SECRET_ACCESS_KEY
Build and push container
Firstly, we need to create the docker registry repo AWS ECR:
I just used instructions provided here: Instructions
Or using CLI:
$ REPOSITORY_NAME=repo-name
$ aws ecr create-repository --repository-name=$REPOSITORY_NAME --profile $AWS_PROFILE_NAME
and you will see in output:
arn:aws:ecr:eu-central-1:149855362562:repository/repo-name repo-name 123123123123.dkr.ecr.eu-central-1.amazonaws.com/repo-name
123123123123.dkr.ecr.eu-central-1.amazonaws.com/repo-name - is and address of our repo/registry
Once the repository is ready we can push our container there:
- Login to the registry
$ aws ecr get-login-password --profile $AWS_PROFILE_NAME | docker login --username AWS --password-stdin 123123123123.dkr.ecr.eu-central-1.amazonaws.com/repo-name
cdinto the directory withDockerfileand execute the following command to push your container:
LOCAL_TAG=my_app/app
REGISTRY_TAG=123123123.dkr.eu-central-1.amazonaws.com/my-repo
$ docker build -t $LOCAL_TAG . && docker tag $LOCAL_TAG $REGISTRY_TAG && docker push $REGISTRY_PATH
LOCAL_TAG - just a container tag
